Elektromagnes rozrusznika 131121
Solenoid W celu sprawdzenia dostępności prosimy o kontakt telefoniczny
|
Zastosowania
(12)
|
|
| B/LUCAS |
26355A |
| F/LUCAS |
26388A |
| J/LUCAS |
26355D |
| LUCAS |
26355 |
| LUCAS |
26355J |
| LUCAS |
26356 |
| LUCAS |
26388 |
| LUCAS |
26388F |
| LUCAS |
26407 |
| LUCAS |
26407E |
| LUCAS |
26428 |
| LUCAS |
26428A |
|
Cechy produktu
(15)
|
|
| B+ |
M10 |
| Coil bolt |
M6 |
| Coil bolt l. |
16.80 |

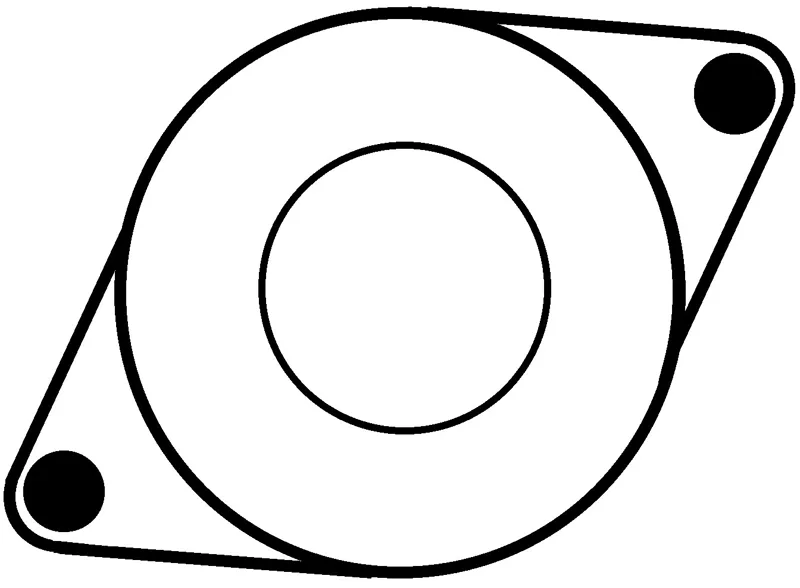

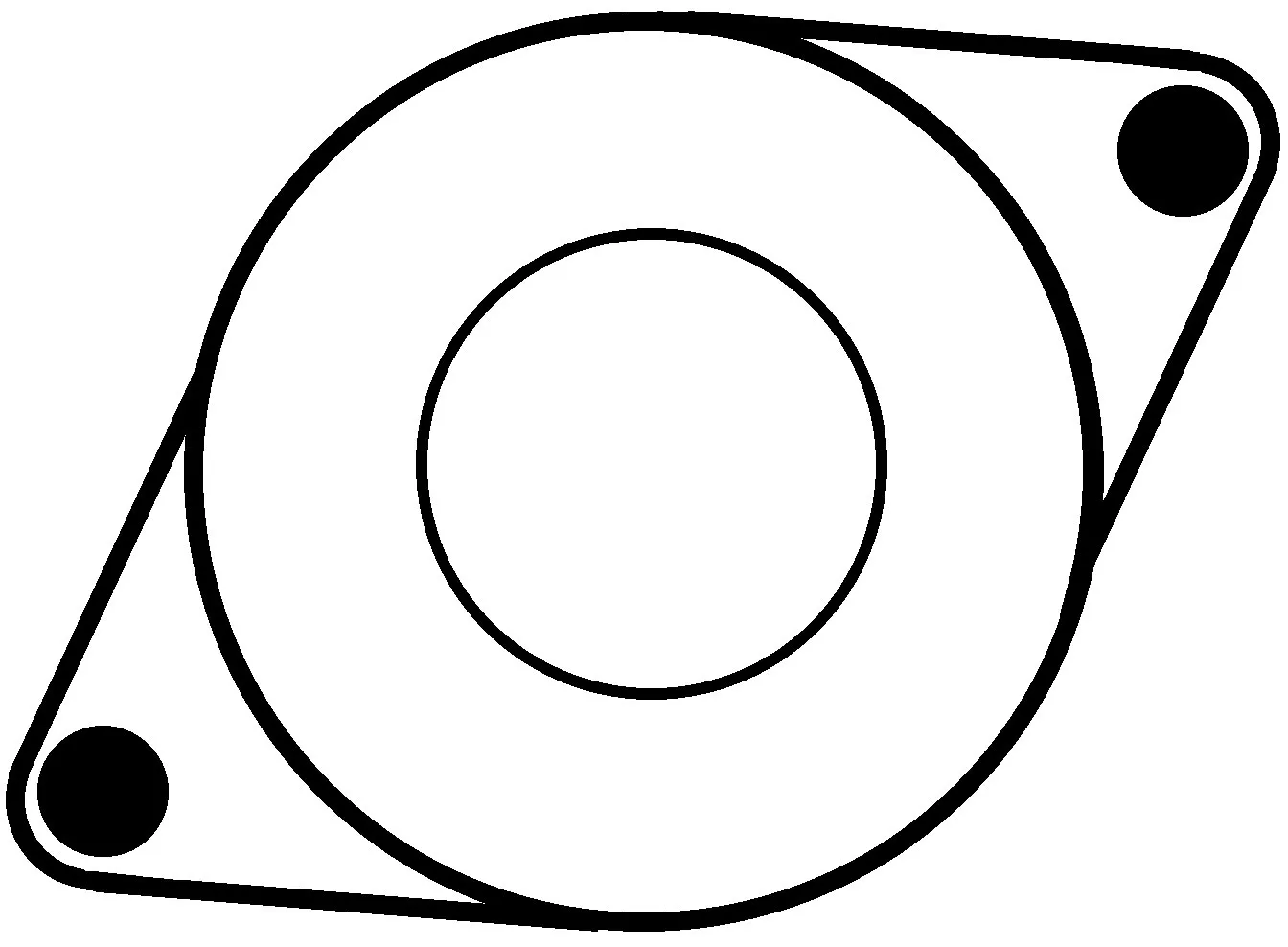

| Drawing |
No39 |
| Height/B+ |
30.95 |
| ID/cover |
26.20 |
| Kl. 50/mm |
6.3 |
| No./terminals |
4 |
| OD |
53.70 |
| OD/cover |
60.40 |
| Remarks |
Cap: Cargo 131276. |
| Servicing |
M50 |
| Total length |
207.20 |
| Voltage |
12 |
| Width/kl. 50 |
12.35 |
